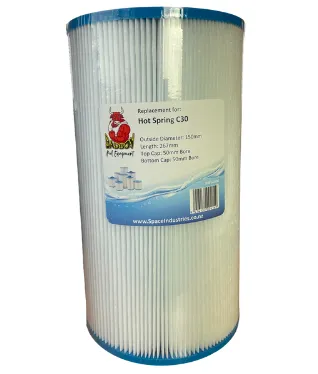

BB Hot Springs C30 Cartridge Filter

Check the dimensions to ensure correct selection of replacement cartridge filter.

• Outside diameter 150mm
• Length 260mm
• Top/Endcap 50mm hole
• Bottom/Endcap 50mm hole

This filter replaces

• Pleatco PWK30
• Unicel C-6430
• Filbur FC-3915
• OEM 31489
• Other SC712, 60301

Filter Maintenance

It is vital your filter cartridge is maintained correctly to maximize its life and usefulness.

The Importance Of A Well Maintained Cartridge

The life of a filter cartridge depends on how you treat it.

Filter clogging is caused by soaps, chemicals, perspiration, body fats, oils and fine particles of dust or dirt.

Maximise The Life Of Your Filter

There are specific things you can do to maximise the life of your filter:

• Maintain the pool water chemistry in proper balance.
• Clean the cartridge in accordance with its cleaning instructions.
• Do not scrub the filter with a stiff brush.
• Do not use a high pressure hose.
• Do not use flocculants.
• Rotate two sets of cartridges to prolong the life of the filters considerably.

Instructions For Cleaning Your Filter Cartridge

All cartridge filters should be cleaned at least every 1-2 months (more often with high usage). If you follow these cleaning procedures you will ensure the maximum life of the cartridge:

• Remove the cartridge from the filter housing or skimmer box.
• Wash the filter using a garden hose or a cleaning tool, working from the top down. Do not use a high pressure hose or a brush.
• Spray the cartridge using Filter Renew Spray or soak it in Filter Brite or Liquid Filter Brite according to the directions.
• Rinse the cartridge once more with a hose to remove any remaining oils or cleaning solution.

Eventually your cartridge filter will block and will need to be replaced – usually within 1 to 2 years – depending on the amount of use.
